RPOWER - How to Setup a POS Workstation

1. Un-box the equipment:

2. Plug in the devices:

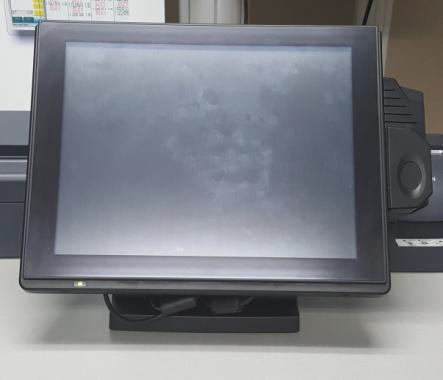

3. Setup the POS:

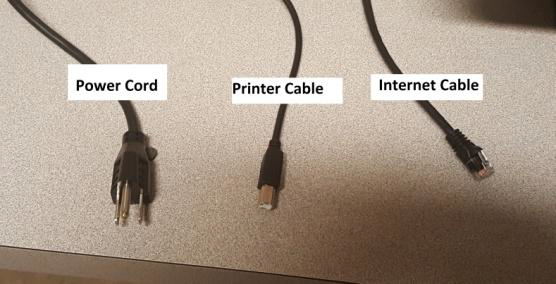

1. Plug the Power Cord into a wall outlet
2. Plug the Printer cable in to the USB connection on the back of the Printer
3. Plug the Internet cable into Office Internet Modem

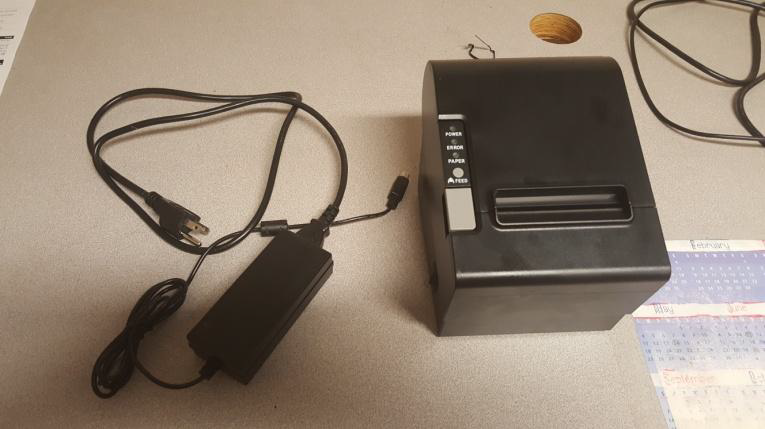

4. Setup the Printer:

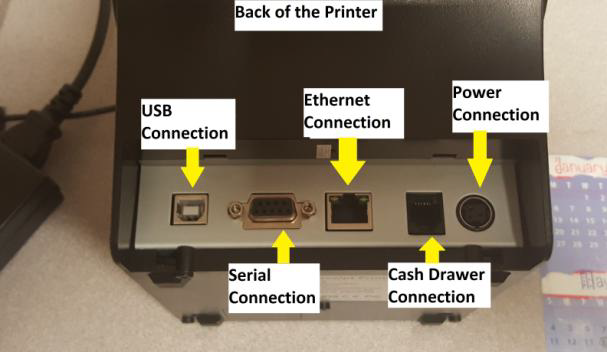

1. Connect the Printer cable
2. Connect the Small end of the Cash Drawer Cable
3. Connect the Power Connection
4. Plug the Power Supply into a wall outlet

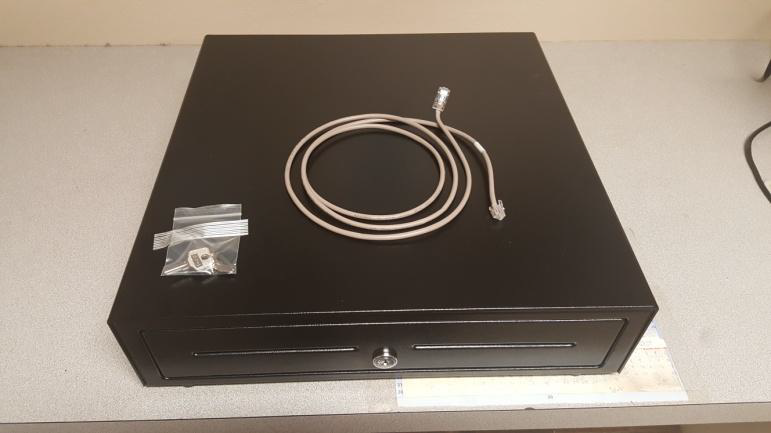

5. Setup the Cash Drawer:

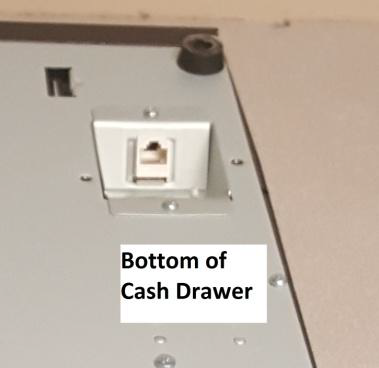

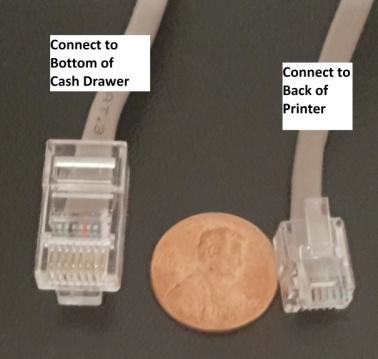

1. Connect the Big end of the Cable to the connection under the Drawer
2. Plug the Small end of the Cable into the Printer connection
