Step by Step Instructions

You may have run into issues with the placement of the buttons on your order screen. Should you need to change it, follow this guide.

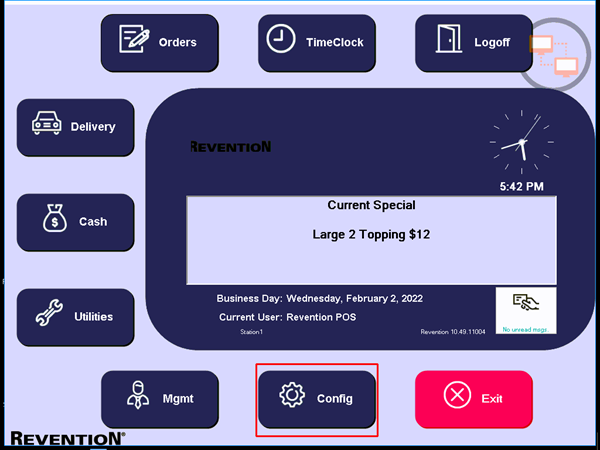

Log in to Revention, and go to Config.

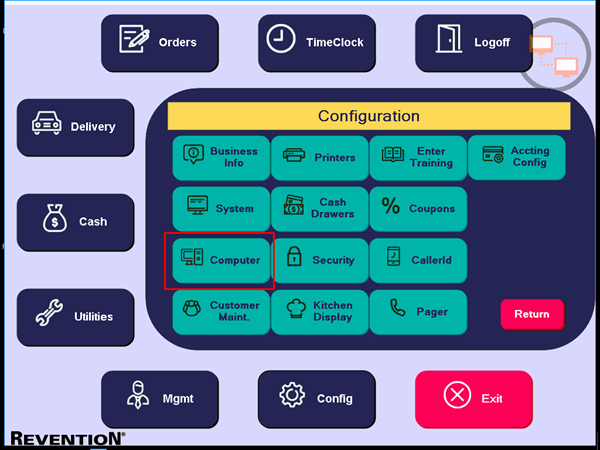

 Select the tab for Computer.

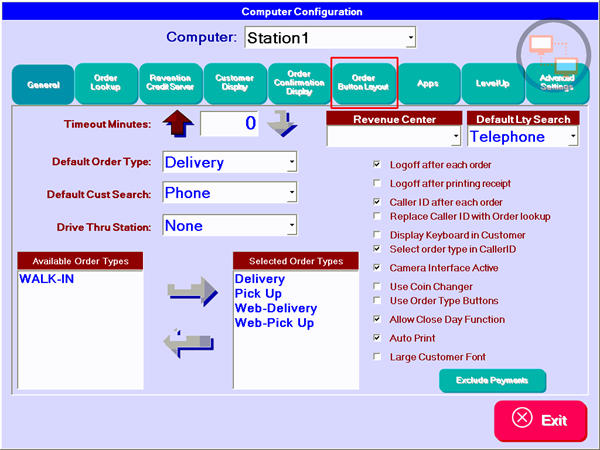

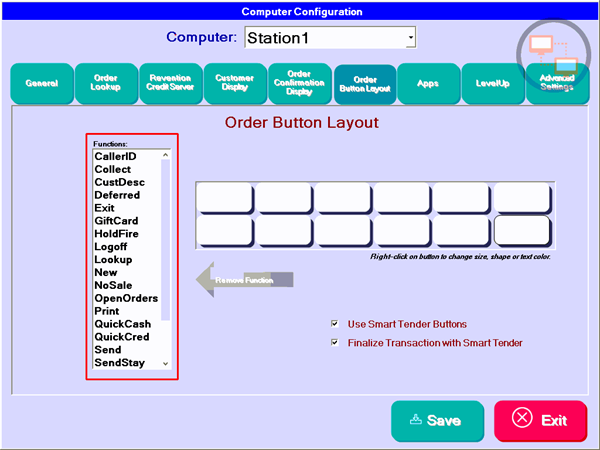

From the row options at the top of the screen, navigate to the one called Order Button Layout.

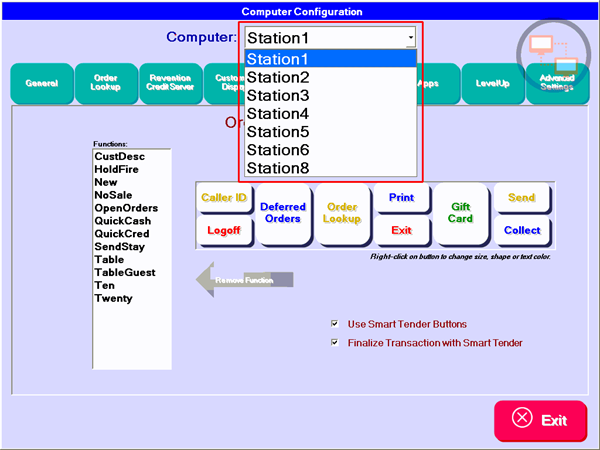

Choose the station you wish to edit from the drop down at the top of the screen.

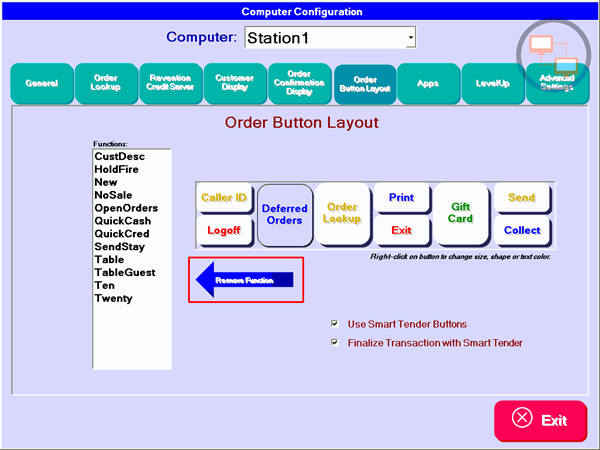

 To remove buttons, click the button you wish to remove and press the Remove Function. To rearrange the order of the Order Buttons, follow the same steps as you must remove them from the layout prior to moving them.

Now you can select an option from the available choices to the left of the layout preview and click in the empty space you want that button to be located.

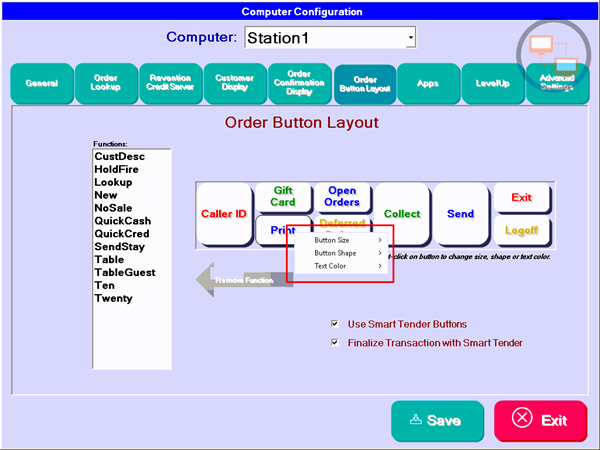

You can also customize size, shape, and text color of any of the buttons by right clicking one of them and hovering over the Button Size, Button Shape, or Text Color options.

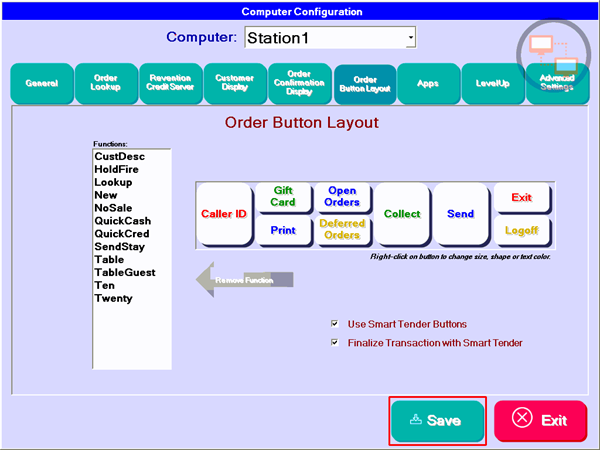

Once you’ve achieved the desired layout for your Order Buttons, click save at the bottom of the screen. From here, you can choose another station from the drop down at the top if needed.

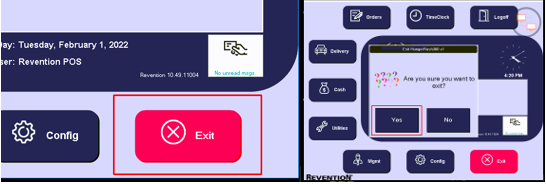

Or if no other station needs this modification, you can exit Revention on the station you changed by clicking Exit from the main screen of Revention, then yes to bring you to the desktop.

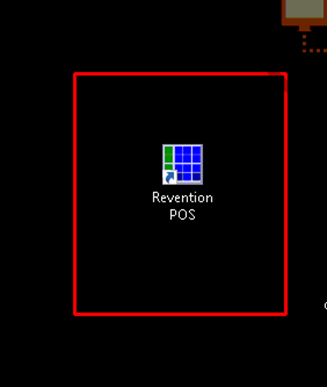

From here, double click the Revention shortcut.

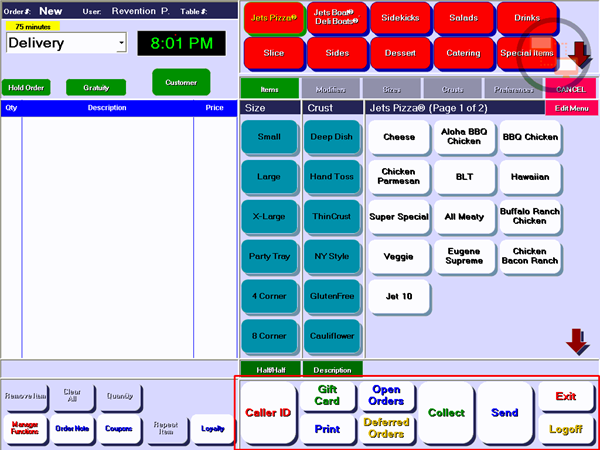

Log back into Revention and go into the Order screen to confirm your changes.
